LW Q38E-Q1OO-3K6L-1
Manufacturer:
Osram
Mfr.Part #:
LW Q38E-Q1OO-3K6L-1
Datasheet:
Description:

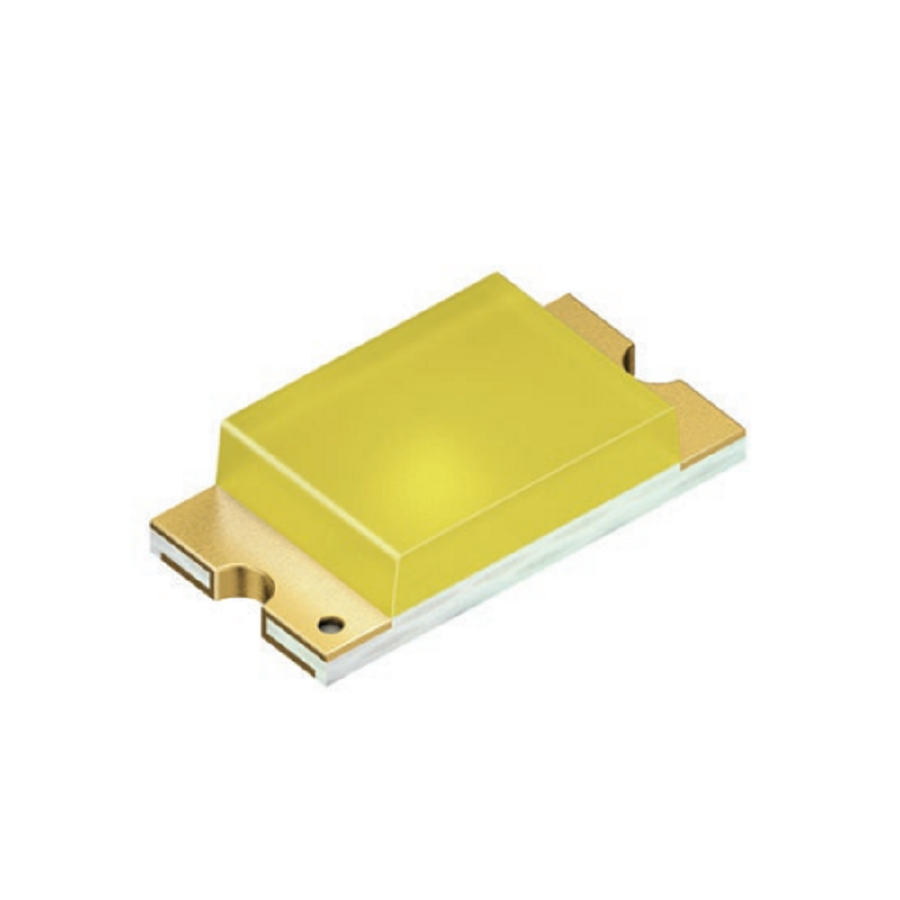

LEDs 0603(1608 Metric) SMD/SMT White 8200 K 5 mA 2.85 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 400 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Manufacturer Package Identifier | LW_Q38E |
| Contact Plating | Tin |
| Forward Current | 5 mA |
| Forward Voltage | 2.85 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Color | White |
| Illumination Color | White |
| Lens Style | Colored, Diffused, Rectangular |
| Luminous Intensity | 90 mcd |
| Number of LEDs | 1 |
| Viewing Angle | 150 ° |
| Lens Transparency | Diffused |
| Lens Color | Yellow |
| Dominant Wavelength/CCT (K) | 8200 K |
| Reverse Voltage | 5 V |
| Max Junction Temperature (Tj) | 95 °C |
| Luminous Flux | 240 mlm |
| Schedule B | 8541402000 |
Stock: 56826
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.11285 | $1.12850 |
| 50 | $0.09508 | $4.75400 |
| 100 | $0.08011 | $8.01100 |
| 500 | $0.06446 | $32.23000 |
| 1000 | $0.06010 | $60.10000 |
| 3000 | $0.05946 | $178.38000 |
| 5000 | $0.05882 | $294.10000 |
| 10000 | $0.05754 | $575.40000 |
